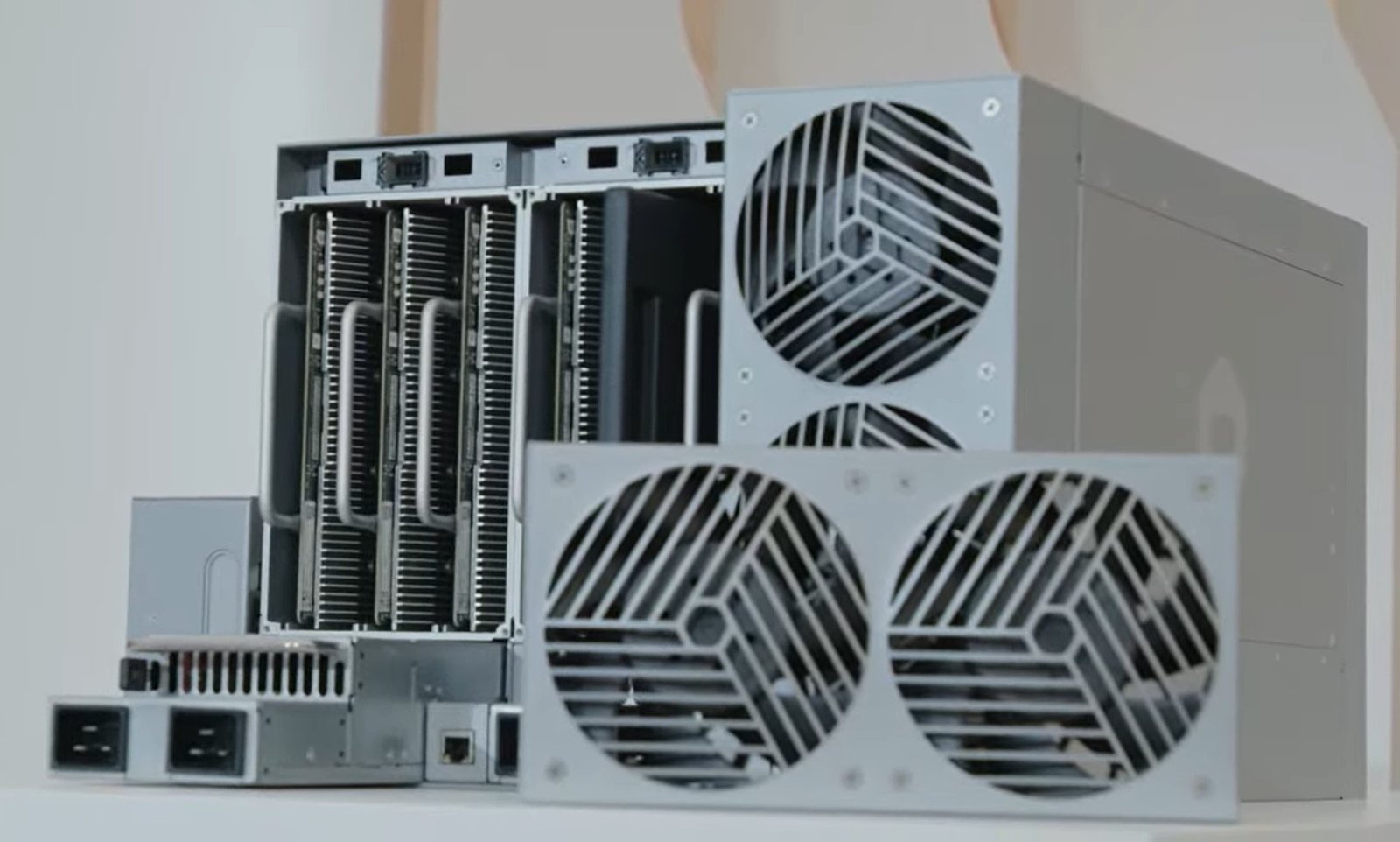

Proto Rig modular bitcoin mining

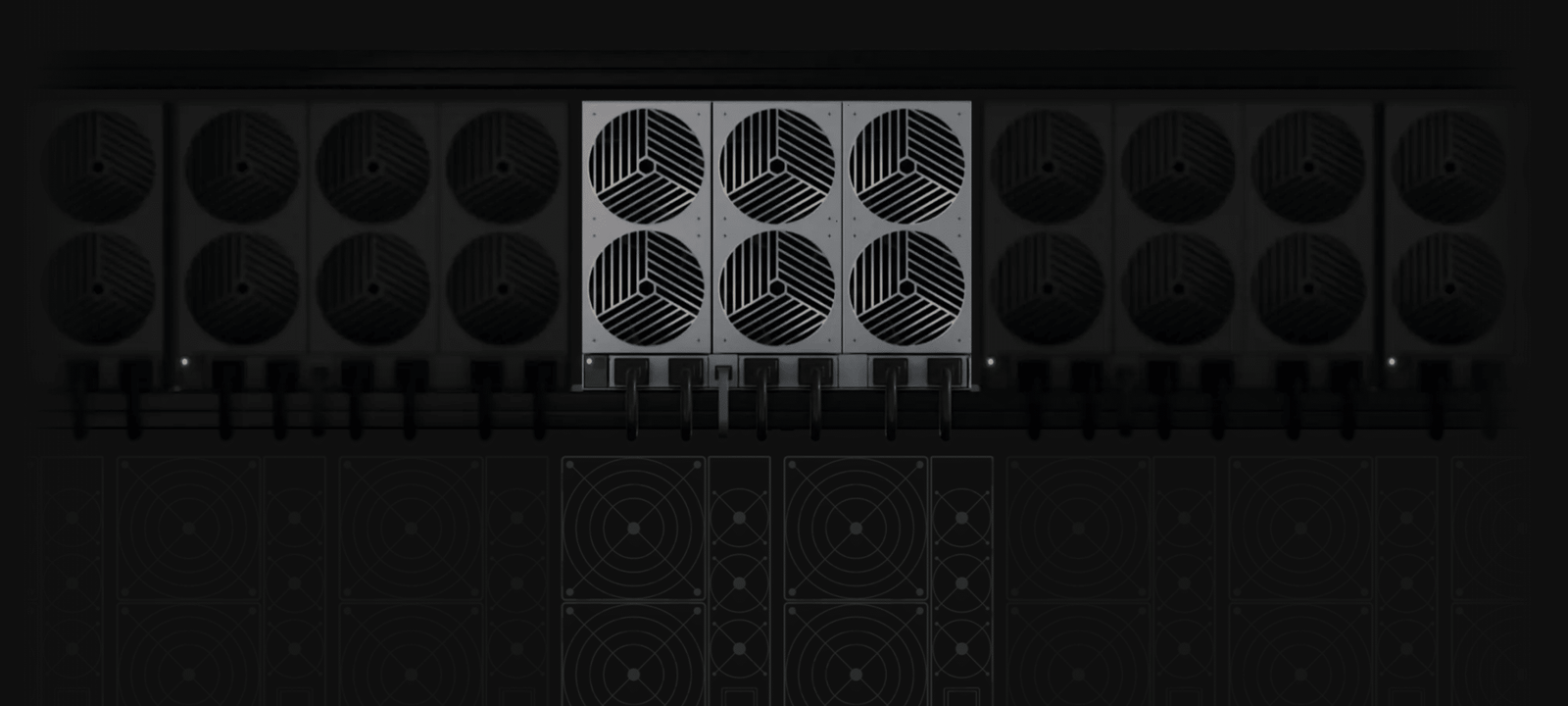

The next generation in mining: replaceable components, top-tier efficiency, 9.4 kW/foot density, and tool-free repairs under 90 seconds.

Every aspect of the Proto Rig is designed for long-term flexibility:

Contact Sales

With modular hardware and software that simplifies, Proto shares a fresh, new take on what mining can be.

  • Hashrate

    +0TH/s

    with 9 hashboards

  • Power Efficiency

    0.1 J/TH

    Air-cooled

  • Power Consumption

    0W

    (4,000 W per PSU)

  • Under

    0sec

    on-rack repairs

  • 01

    Tool-free, on-the-rack upgrades and repairs in under 90 seconds.

    Book a Free Consultation
  • 03

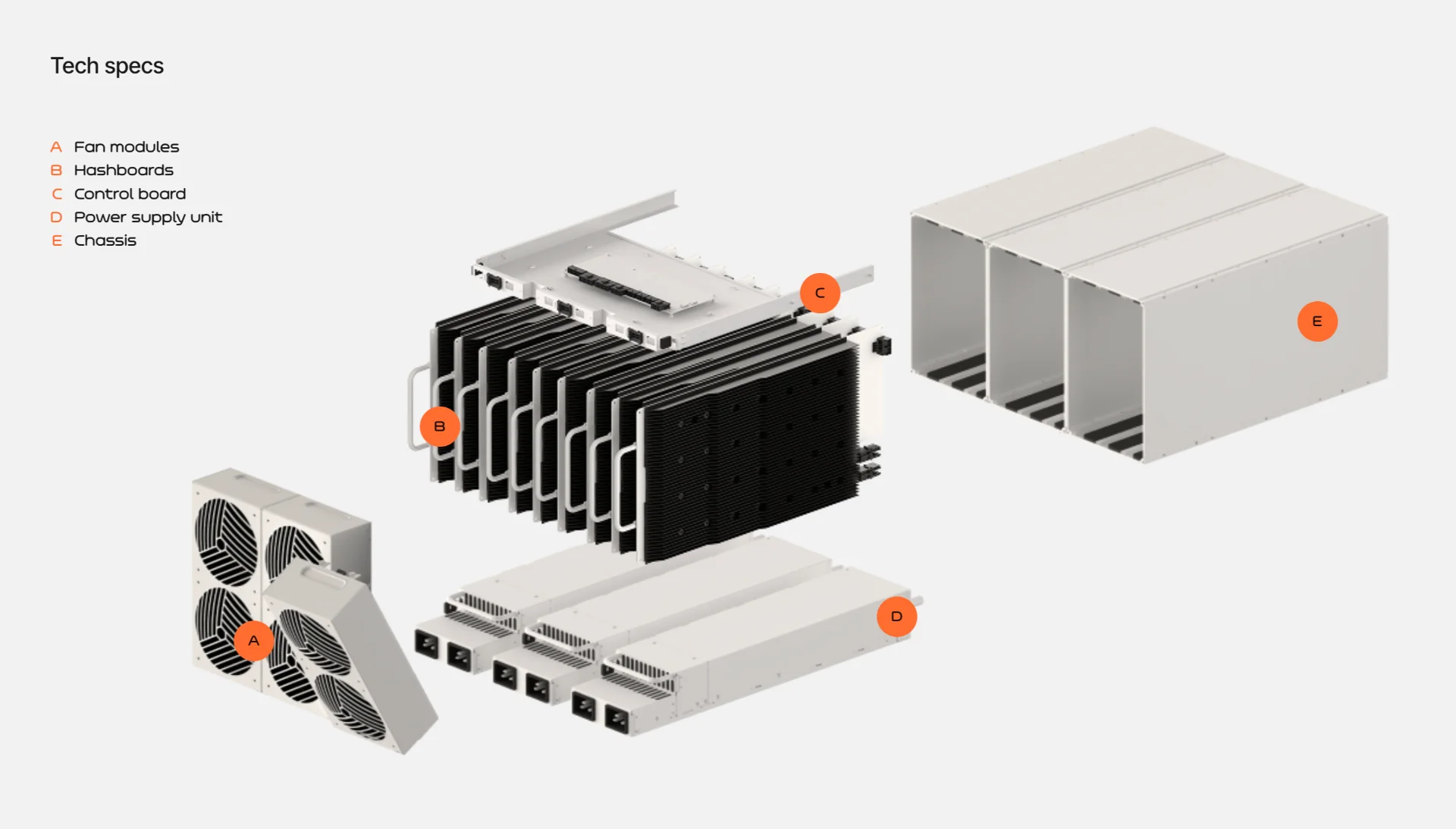

    Replaceable hashboards for flexible deployment and upgrades.

    Book a Free Consultation
  • 04

    Fanless PSU and three-phase power balancing for efficient infrastructure.

    Book a Free Consultation

Purpose built. Field tested. Future-proof infrastructure.

Contact Sales

  • Upgradeable hashboards

    As chip technology continues to improve, Rig’s replaceable hashboards make upgrades fast and easy.

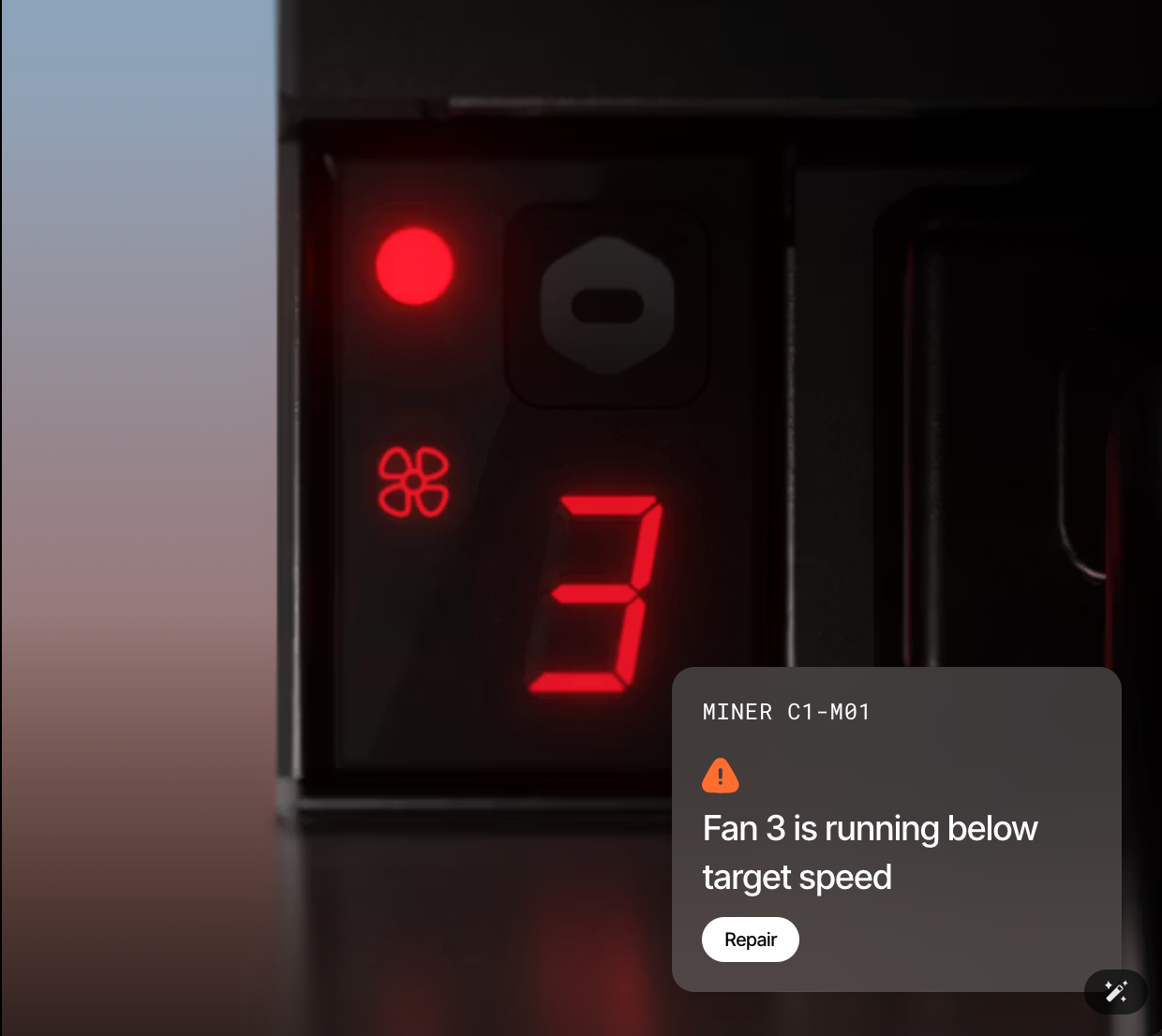

  • Dynamic LED and software alerts

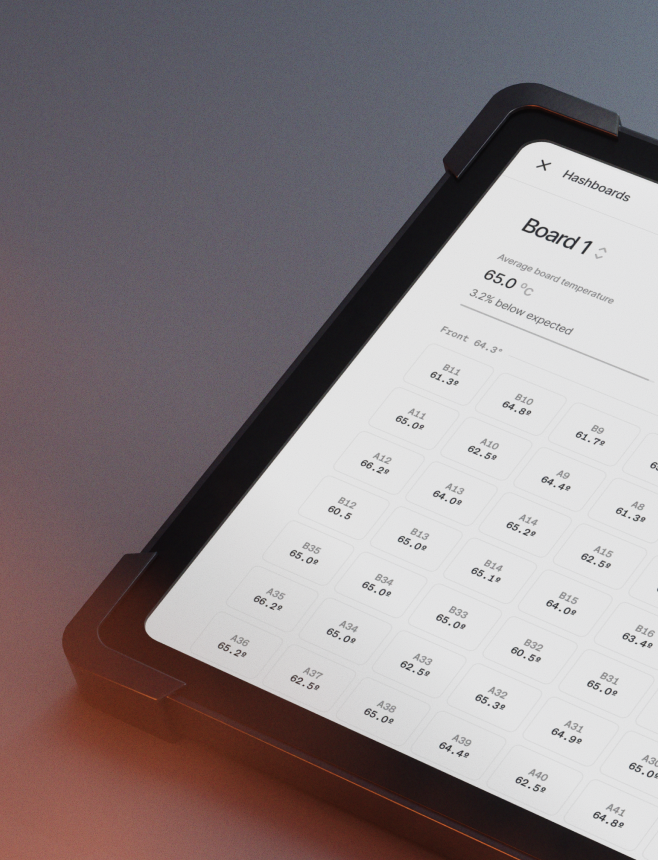

    Rig’s software delivers clear, detailed error messages that sync with LEDs on the hardware for quick diagnostics and identification on the rack.

  • Open source firmware, software, and APIs

    Use Rig's built-in firmware and APIs to seamlessly integrate with your current setup, or get full control in a single platform with Proto Fleet–our free, open source mining management software.

  • Fewer fans, fewer failures

    Streamlined hardware design means Rig uses 6 fans compared to the 21 fans used by the leading competitor to cool the same footprint. Fewer parts, fewer failures, more uptime.

  • Air-cooled and immersion ready

    Rig adapts to air and immersion cooling with ease. Fans come pre-installed for quick deployment. For immersion setups, just remove the fans and it’s ready to go.

  • Performance Metrics

    • HashrateUp to 91 TH/s per board Up to 819 TH/s with 9 hashboards
    • Power EfficiencyAs low as 14.1 J/TH
    • Power Consumption Up to 12,000 W
(4,000 W per PSU)

  • Power

    • AC input voltage208–240 V
    • AC input Frequency50/60 Hz
    • Power Cables (Included)3x 6 ft. C20 to 2x C19
    • CoolingPSU Actively cooled by system fans

  • Dimensions

    • Width390 mm
    • Height290 mm
    • Depth500 mm
    • Total System Weight (9 Hashboards)110 lbs
    • Hashboard Weight5.38 lbs

  • System specs

    • ChassisSteel & aluminum chassis with Premium Powder Coating
    • System airflow1300 CFM
    • Fans6x High efficiency 48V Delta fans
(variable speed up to 9,000 RPM)
    • Network ConnectivityRJ45 Ethernet 10/100M
    • Display PanelAction button with 7-segment display & system status indicator

  • Operating requirements

    • Operating Humidity
(Non-condensing, RH)10-90%
    • Operating Altitude≤2,000 meters

  • Warranty

    • Standard warranty (coverage of all system components)12 Months
    • Extended WarrantyOptional Add-on
